At some point in early 2017 I decided to pass my motorcycle license in France. It was a bureaucratic dance (a regular expat activity), and I found out I could not pass an A license (unrestricted motorcycle license) directly, as the laws in France make you get an A2 license first, and only allow you to pass the A license two years after getting the A2. An A2 license is a motorcycle license that only allows you to ride motorcycles with up to 35kW power output, while an A license doesn’t impose any limitations.

I got the A2 license in mid 2017, and right after that got a motorcycle that, of course, made almost twice as much power than the A2 license allows. That was no problem though, as the French legislation allows manufacturers to homologate restricted versions of motorcycles that originally make more than 35kW, so I could just ask the dealer to install a restrictor to limit the power. I got the motorcycle with the restrictor and was super happy. But how does this restriction thing work? How does the ECU work? I already worked with embedded development and reverse engineering before, how hard could it be?

Restriction Kit

The restriction kit is very simple: smaller air intakes, limiting how much air the engine can ingest, and an ECU replacement (replacing the entire module), which seems to be the exact same hardware, just with a different firmware. I have the original parts as the bike was originally unrestricted and the restriction kit is just an “add-on”, so I should be able to compare anything I need.

Talking to the ECU

First I wanted to be able to communicate with the ECU. This would allow me to log data to study how the bike behaves, and potentially dump the firmware. After some research, I found out my ECU uses a K-line protocol, possibly ISO 9141 or ISO 14230. Also found out some people already managed to communicate with ECUs like mine, by reversing some accessories that are plugged to the diagnostics port. There are many gear indicators that are plug-and-play and can guess which gear is currently engaged by talking to the ECU. There was a guy that tapped into the port to look at the messages the indicator was exchanging with the ECU. It turns out, nowadays, doesn’t matter which crazy idea you had, probably somebody else already tried to do it. As expected, the interface operated at 10400 bauds, but apparently the message content didn’t match any of the ISO standards:

Initialization:

Pull line low for 70ms
Pull line high for 120ms
> FE 04 FF FF
Wait 200ms
> 72 05 00 F0 99
< 02 04 00 FA

Requests/responses:

> 72 07 72 11 00 14 F0
< 02 1A 72 11 00 00 00 18 00 62 57 EF 10 91 63 FF FF 77 00 00 00 80 63 1A 51 DA

> 72 07 72 D1 00 06 3E
< 02 0C 72 D1 00 03 00 00 00 00 00 AC

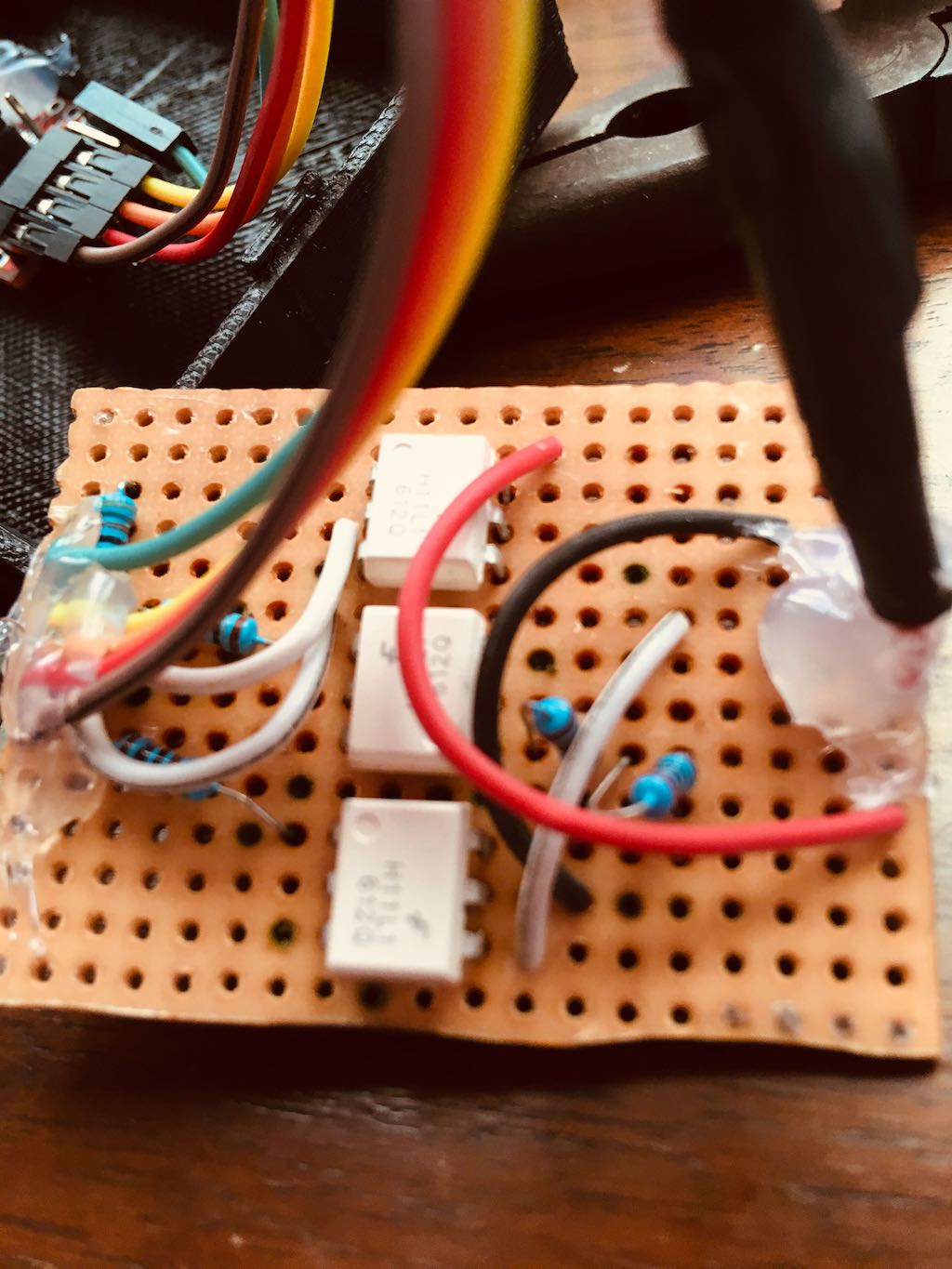

I unfortunately don’t have access to the ISO-14230-4 specification, so even if it was compliant, I wouldn’t be able to tell. The decoding would need to start from guesses. The collaborative work on these forums from more experienced people allowed most of the message to be decoded. One of the posters (gonzo) did a great job on building a circuit to communicate with the K-Line interface through a simple USB<->RS232 adapter. The schematics for the circuit seem to come from a russian forum, and had a few limitations. The communication initialization requires a cycle of pulling down/up the K-line for specific time intervals, which isn’t trivial (not even possible for most chips) to do with the RX/TX pins from the RS232 adapter. I added a third optocoupler that I can control using the RS232 DTR pin, allowing me to transmit the K-Line initialization sequence without any headaches. With all that, I built a first prototype for the circuit:

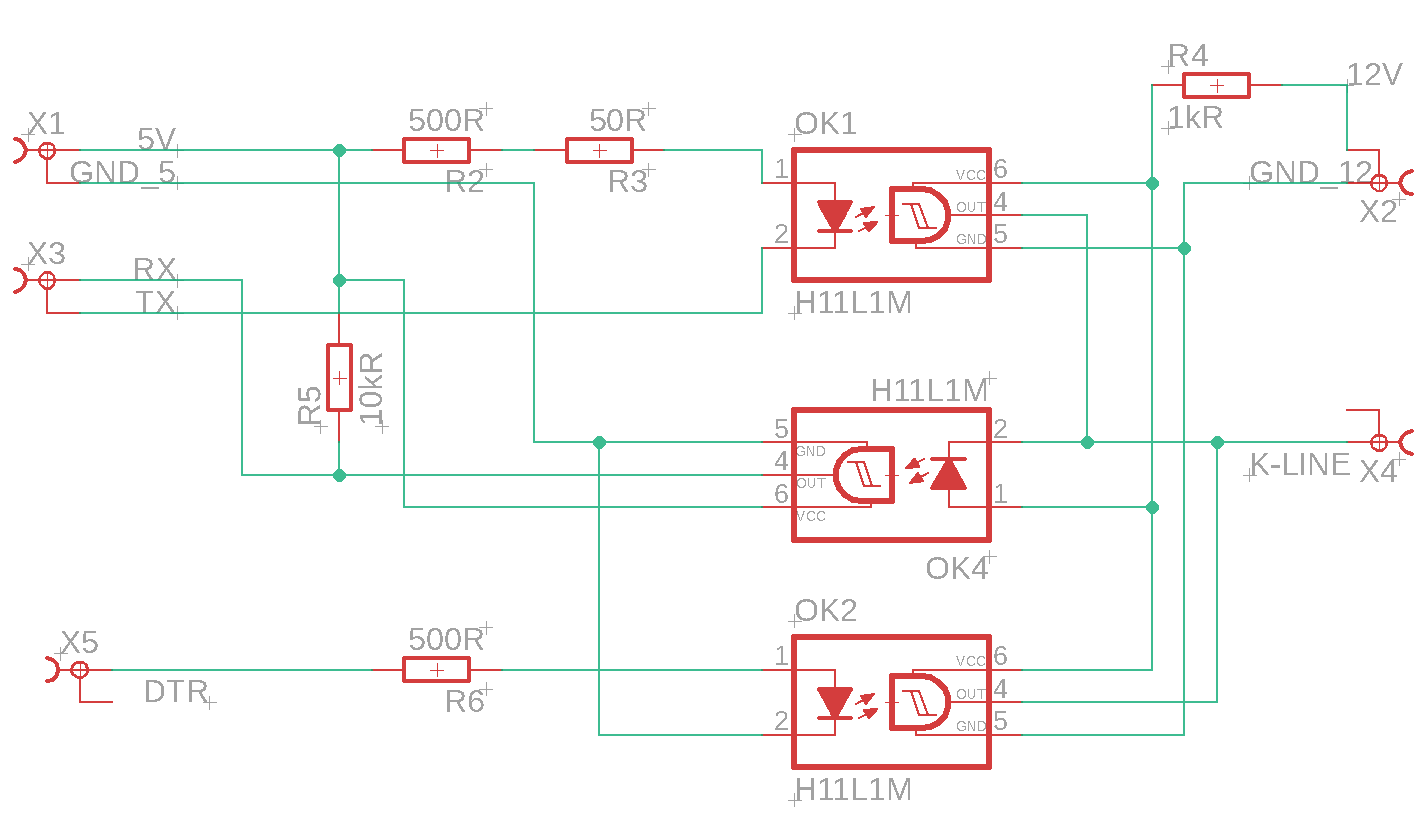

This circuit allowed me to use a simple python program to communicate with my ECU. With that, I Immediately found a problem: the circuit was too sensitive to EM noise, and the messages would get corrupt all the time, forcing the program to reinitialize the connection. It was not easy for me to find the source of the problem, and required some time with a logical analizer to point out what was wrong. I found out the culprit was the 4N25 optocoupler, which isn’t the best choice when building a circuit that may be exposed to a lot of EM noise. I changed them for H11L1 ICs, as the schmitt-trigger circuit adds some hysterisis that have the nice effect of reducing noise from the output. Circuit changed, problem solved. This is the circuit for the version I’m using:

Parsing the messages

It’s a guess game: change it until you get to something that makes sense. Some things are absolutely obvious, like RPM and speed, but others not so much. Some members managed to decode most of the responses sent to the gear indicator:

   SRC,  LEN,  TGT, TABL, STRT,  LEN, CHK
> 0x72, 0x07, 0x72, 0xD1, 0x00, 0x05, 0x3F
   SRC,  LEN,  TGT, TABL, STRT, NEUT, ????, ????, ????,  ENG,  CHK
< 0x02, 0x0B, 0x72, 0xD1, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xAF

   SRC,  LEN,  TGT, TABL, STRT,  LEN, CHK
> 0x72, 0x07, 0x72, 0x11, 0x00, 0x0E, 0xF6
   SRC,  LEN,  TGT, TABL, STRT, RPMH, RPML, TPSV, TPS%, ECTV, ECTC, IATV, IATC, MAPV, MAPP, ????, ????, BATV,  SPD,  CHK
< 0x02, 0x14, 0x72, 0x11, 0x00, 0x05, 0x5D, 0x19, 0x00, 0x2A, 0x7B, 0xAF, 0x36, 0x68, 0x45, 0xFF, 0xFF, 0x8B, 0x14, 0x18

It was also obvious that by changing the table address and read length, other values were to be found. By trying to read many different bikes, a community table was built with some of the differences. Another member found documentation for an aftermarket display showing that probably the values after the speed were ignition advance and injection time. These two aren’t trivial to interpret, and some members came up with different theories. I made some experiments myself and chose the method that gave the outputs that seemed closer to reality.

It worked fine, but it needs validation. With all that in hand, I decided to implement a custom display for my bike, displaying the data I was reading.

Display Box

I decided to attach a screen to the handlebars to display the data I’m interested in. For that, I came up with a few requirements for a first version:

  • Screen should be easily detachable: This way I can remove it to protect it from the elements (sun/rain). If you never had to implement a weatherproof display that looks nice, I can tell you: there’s a painful learning curve.
  • Fast initialization: Screen should be available within seconds after turning on the bike.
  • Non-destructive installation: Having it on the bike must not require the removal/modification of any original part.

With all that in mind, I came up with a project:

  • Raspberry Pi for the graphics rendering power plus any need I may have on peripherals (GPS, IMU, Bluetooth, etc).
  • Hyperpixel 4.0 for the screen (a big cheap screen with good resolution).
  • Custom 3D printed case/support.

In the end, I got to something like this:

This way the display is attached to a Raspberry Pi and both can be removed easily (as a single unit), while the power supply and the K-Line<->RS232 circuit are installed permanently.

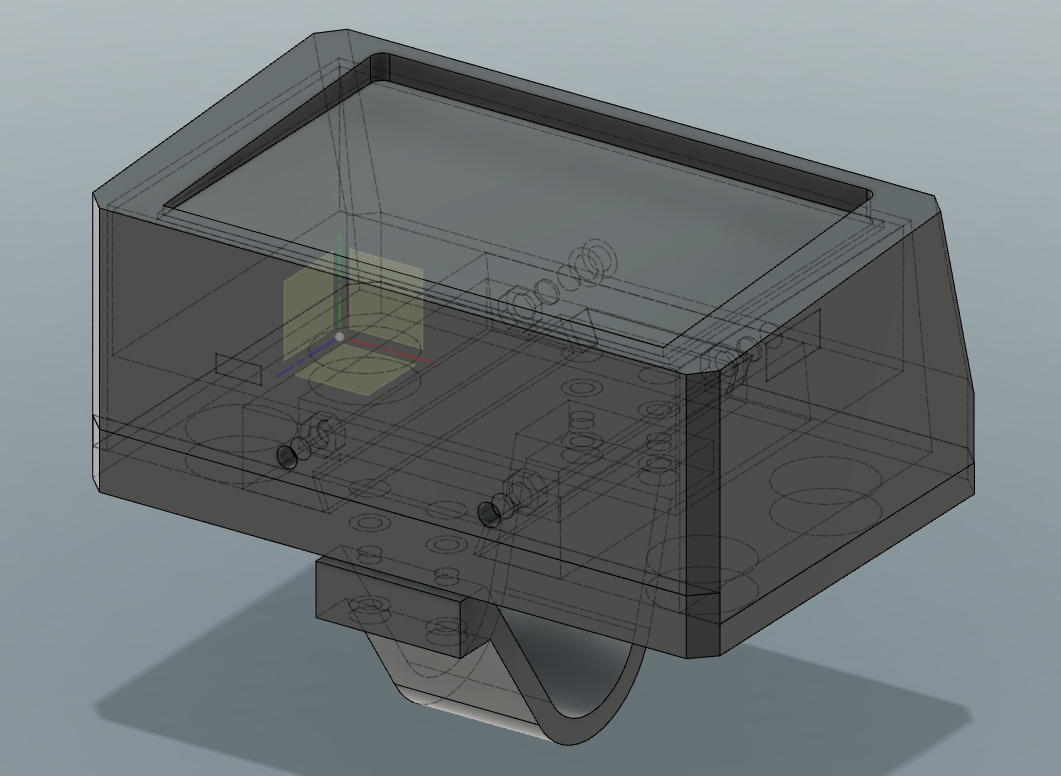

I modeled and printed the parts I needed for the installation, and managed to get all to fit properly. I used Fusion 360 for the modeling, but I still want to make some improvements before publishing them.

Software

I decided to separate the display from the ECU communication software. This way I have modular components that I can develop/test independently.

ECU Communication Software

As I was experimenting from the beginning using Python, I ended up writing the whole thing using Python. The amount of processing this application has to do is minimal, and it spends most of the execution time sleeping. I also added logging capabilities to it, so I can play with the data later. It is a very simple application with serial communication code and a few classes to abstract things. I’m still thinking if I open-source it or not, let me know how you feel about it if you are interested.

Display Software

To allow fast initialization I decided to write an application that writes the video frames directly to the Raspberry’s framebuffer. This way I don’t need to start the whole X11 with a desktop environment before launching the application. I wrote the display software in C++ to make the most of the hardware, and used SDL2 to draw to the framebuffer directly through the videocore4 hardware using OpenGL ES 2.0. It takes around 7 seconds to boot, but I believe I can improve that.

For development I obviously wanted to validate everything on my computer before trying anything on the Raspberry. To minimize headaches from switching between OpenGL and OpenGL ES, I used ANGLE to have an OpenGL ES 2.0 interface on my desktop. This way my whole code would be compliant with OpenGL ES 2.0 from the very beginning.

The application is very simple, and should work very well as a basic C++ / OpenGL / text rendering / network socket communication template. I made it an open-source project, and called it Rockette.

Completed installation

The whole system worked very well, but I’m still not sure the parsing is correct. To be sure, I would need to reverse engineer the ECU firmware.

Getting the binaries

I already had the original (unrestricted) ECU, so if I found a way to dump the firmware from both of them, I’d be able to compare them. It sounded logical that both ECUs were almost identical (the only difference being the restriction), so it should be simple to spot the differences. But, how could I dump the firmware? I didn’t even need to figure that out, as I could find dumps for both the restricted and unrestricted ECUs on the internet.

Reverse engineering

With the binaries in hand, I needed to know which instruction set they used, so I could reverse them. My ECUs seem to be plastic-sealed (which is quite common for these things), and there doesn’t seem to be a non-destructive way to get them open to peek at the microcontroller. After hours searching the internet, I managed to find a random guy on a random forum that cracked open an ECU just like mine and posted photos of the board to get details on how to flash it. I didn’t have access to the full-resolution images, just the thumbnails, and I felt like this:

Fortunately, on his last post on this thread, he posted what I needed: The MCU had “freescale 2m27v” written on it. The microcontroller is an MPC5604B! And I already know that the assembly is probably big-endian because of the messages I decoded. This microcontroller is part of the e200z0 PowerPC family with VLE support, but I can’t find a way to get a valid disassembly from it. Ghidra and other tools don’t seem to support this architecture, so please let me know if I’m missing something.

Injection Maps

Even without being able to reverse the binary, I should be able to extract the injection maps. I found very instructive tutorials on the internet on how to use a tool called WinOLS, and not only managed to extract many different injection maps, but also to compare the maps from the restricted and non-restricted binaries.

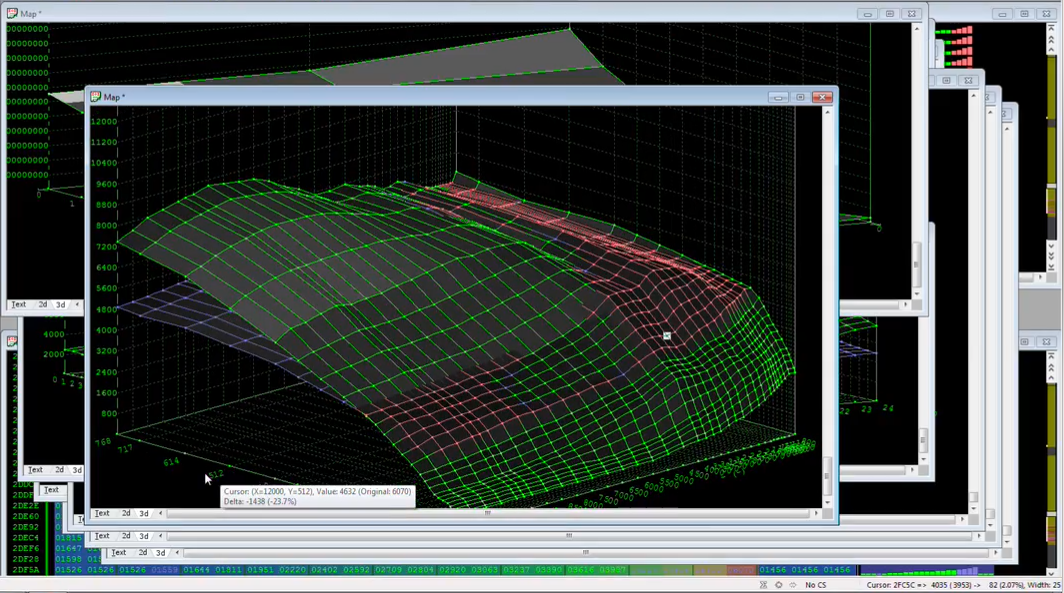

Comparing the ECU maps between the A2 restricted and unrestricted versions

Matching data with maps

The parsing still needs validation for some values. As I collect logs I’ll compare the logged data with the maps I found.
